TCI v10


A programmable ignition is extremely valuable in repair work as it fit a wide array of bikes.
It’s especially helpful if original parts has been discontinued or is overpriced.
And of course it is required if you want to tune your engine.

Features

  • Programmable TCI.
  • For ONE or TWO* cylinders
  • For [2 strokes engines] and for [4 strokes engines with wasted spark*]

    * On 4stk engines with 1 pickup on the crankshaft, one spark occur at compression stroke and one at exhaust stroke. Firing in the exhaust stroke is a wasted spark. Hence the name…

  • 80MHz MicroController control unit
  • Firmware included
  • Easy programming with Micro USB Type B connection and terminal console
  • Compatible Windows, Linux, Mac
  • Non volatile configuration
  • One programmable ignition curve
  • Engine speed from 10 to 16,000 RPM.
  • 0 deg advance from 1 to 500 RPM (to avoid kickback)
  • Adjustable timing in 13 steps from 500 to 16,000RPM
  • Improves timing curve
  • Removes stock Rev limiter
  • 1 input for an inductive pickup (VR) or Hall type or Points
  • Pickup polarity can be set to Positive, Negative or Automatic detection.
  • 1 output for an INDUCTIVE coil type >1.5ohm.
  • Kill switch input
  • Tachometer output
  • Coil current: Max: 15A
  • Over Voltage Protection: Max 430v
  • Coil protection: shut off after 2sec without signal
  • Power supply voltage DC 10 to 16 volts
  • Quiescent current 30mA
  • Protected against reverse supply voltage
  • Available as a ready-to-use device in the SHOP section
  • Dimensions: 100 x 60 x 25mm (3.9 x 2.4 x 1inch)
  • Plastic box potted for Electrical insulation, Protecting components from mechanical shock and vibration, thermal shock or moisture.

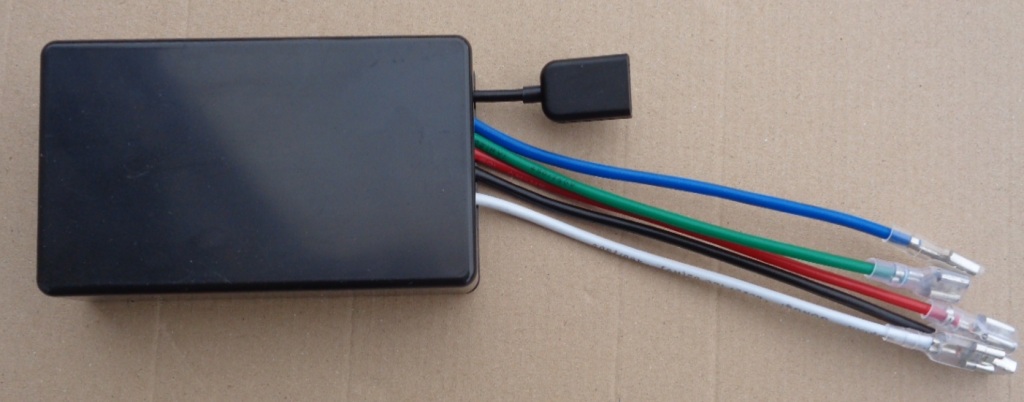

  • 15cm(6”) 1.5mm2(16AWG) wires soldered with 6.3mm automotive female connector
  • Made in France

Cylinders:

Single-cylinder:
If there is one separate pickup:
=> This TCI works.
If there are 2 separate pickups (one for low RPM and one for High RPM):
=> This TCI works and uses only the High RPM pickup.
If the engine works with Missing Teeth:
=> This TCI will NOT works

* Twin-cylinders at 360° crankshaft angle:
The engine works with WASTED spark.
If there is ONE twin coil:
=> This TCI works.

See: TCI compatibility

Remember that ignition coils are different from TCI to CDI system
– CDI coils have low inductance and impedance around 0.5-0.8ohm
– TCI coils have higher inductance and impedance around 1-5ohm


Pickup:

– 1 input for inductive pickup with 1 signal per crank rev.
– Pickup must puts out 3 to 30Vac
Points, reluctors, Hall sensor, optical sensors can also be used as long as they give only 1 pulse per revolution.
– This TCI is not compatible with multi-pulses pickup or missing tooth wheel.

Click here for more info
How to calculate the Pickup Position?

Pickup Polarity

Check the polarity of the pickup (Negative then Positive/NP or the opposite PN) with a Needle galvanometer (in milliAmp position) while kicking.

For a better understanding, this video can help.


Rev Limiter:

The last RPM value you enter is the “rev limit” that stop all sparks.


Ignition timing

Draw the ignition timing curve into this XLS sheet.


HowTo setup

Setup TCIv10r2.pdf


Terminal console

Click here for more info

CoolTerm for Win/Mac/Linux
Teraterm, Putty, Kitty for Win
– Console commands for Mac:
terminal
ls /dev/*usbserial*
screen /dev/cn.usbserial-xxxxxxxx 115200 -L
screen /dev/tty.usbserial-xxxxxxxx 115200

– Console commands for Linux:
3 ways to find the COM-port:
tail -f /var/log/syslog | grep USB
dmesg | egrep --color 'serial|ttyS'
ls /dev/ttyUSB*

Config port:
sudo su
stty -a </dev/ttyUSB0
stty -F /dev/ttyUSB0 cs8 115200 time 10

Connect:
cat /dev/ttyUSB0 & cat > /dev/ttyUSB0


Wiring

Ready-to-use unit: Wiring.


PHOTOS.

Click here for more info

Dwell at LOW rpm:

Dwell at HIGH rpm:


VIDEOS

Click here for more info

Connection to the box:

Setup a ignition timing:

Change the ignition timing:


VERSIONS

Click here for more info

  • Version v10r0c0:

    • POC


  • Version v10r1c0:

    • SMD components.
